Product Description

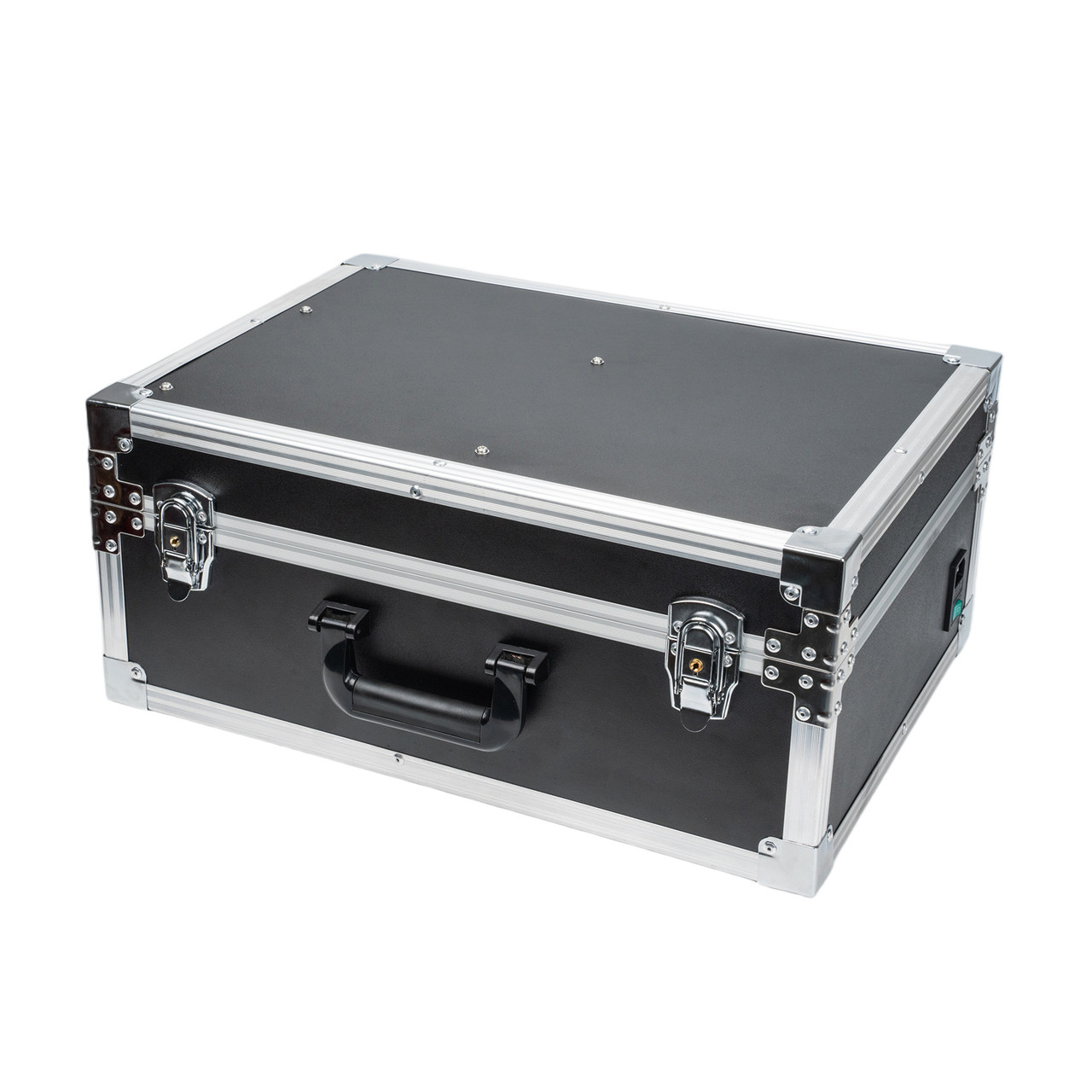

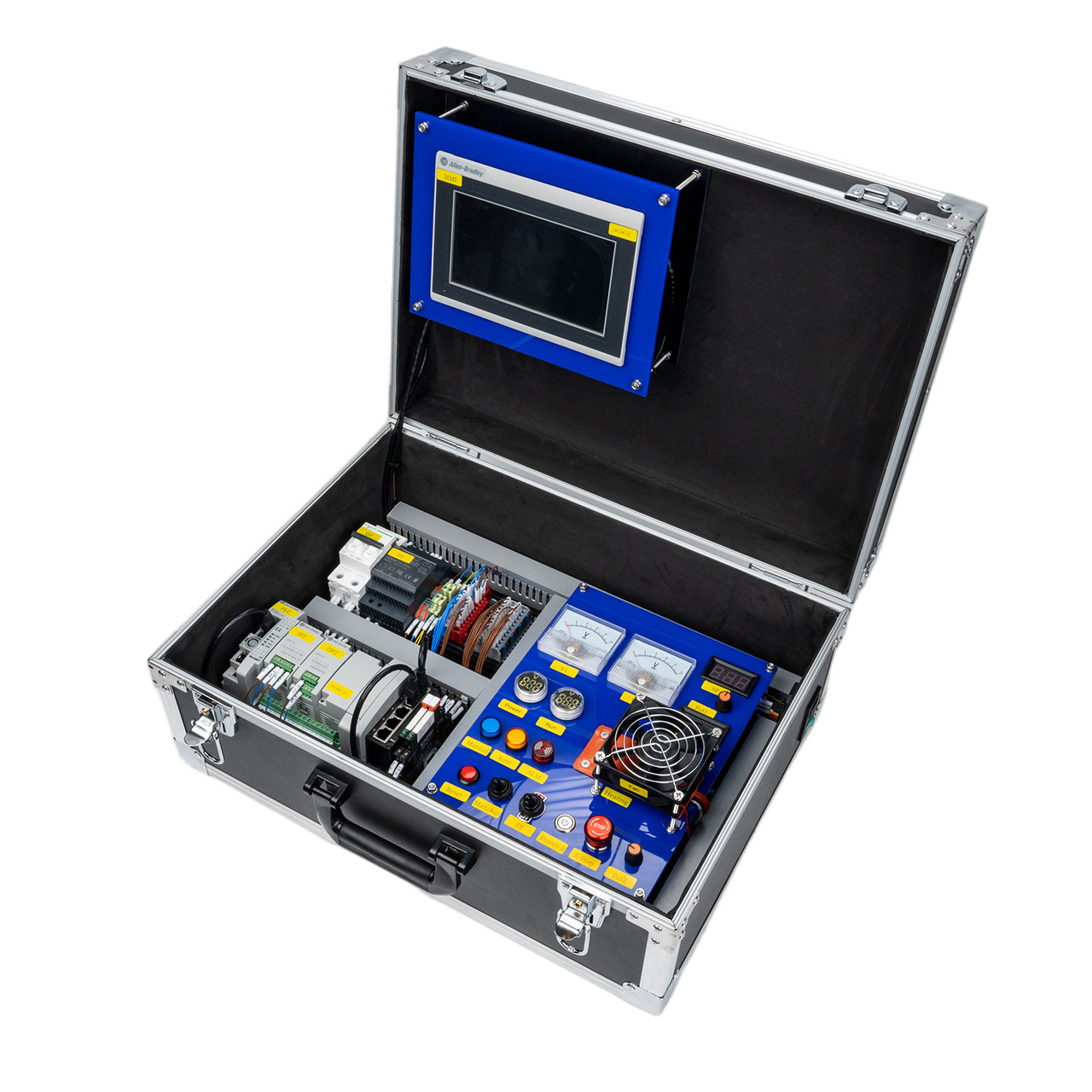

This is the first in our series of "Suitcase Style" PLC Trainers, these are real functioning machines and will work just like a production machine but in a nice suitcase package.
These run on 120VAC and come complete ready to program, they have a sample working program loaded
Ground shipping only, made to order 4-6 weeks for bulk orders
This suitcase simulator has 6 input switches for controlling and detecting the product, in this case we are using a black ABS disk and also a aluminum disk as our part and color with blue ABS… this type of conveyor would be found in a packaging warehouse like UPS, FedEx, Walmart, etc, where we are using inductive and capacitive proximity switches they would be using a barcode reader, detecting the product (box in their case) and sending it down another conveyor line or pushing to a packer placing it on a pallet
There are several things on this trainer that we would like to point out, one is the ability wire it manually using the supplied jumpers, this will give your students the ability to learn wiring and the function of the switches, they will also learn the difference from PNP and NPN, a photo eye vs inductive and capacitive proximity switches.
Learn the ability to tune the system with the pneumatics, you must have supplied air (not a lot) just enough to run the two cylinders back and forth

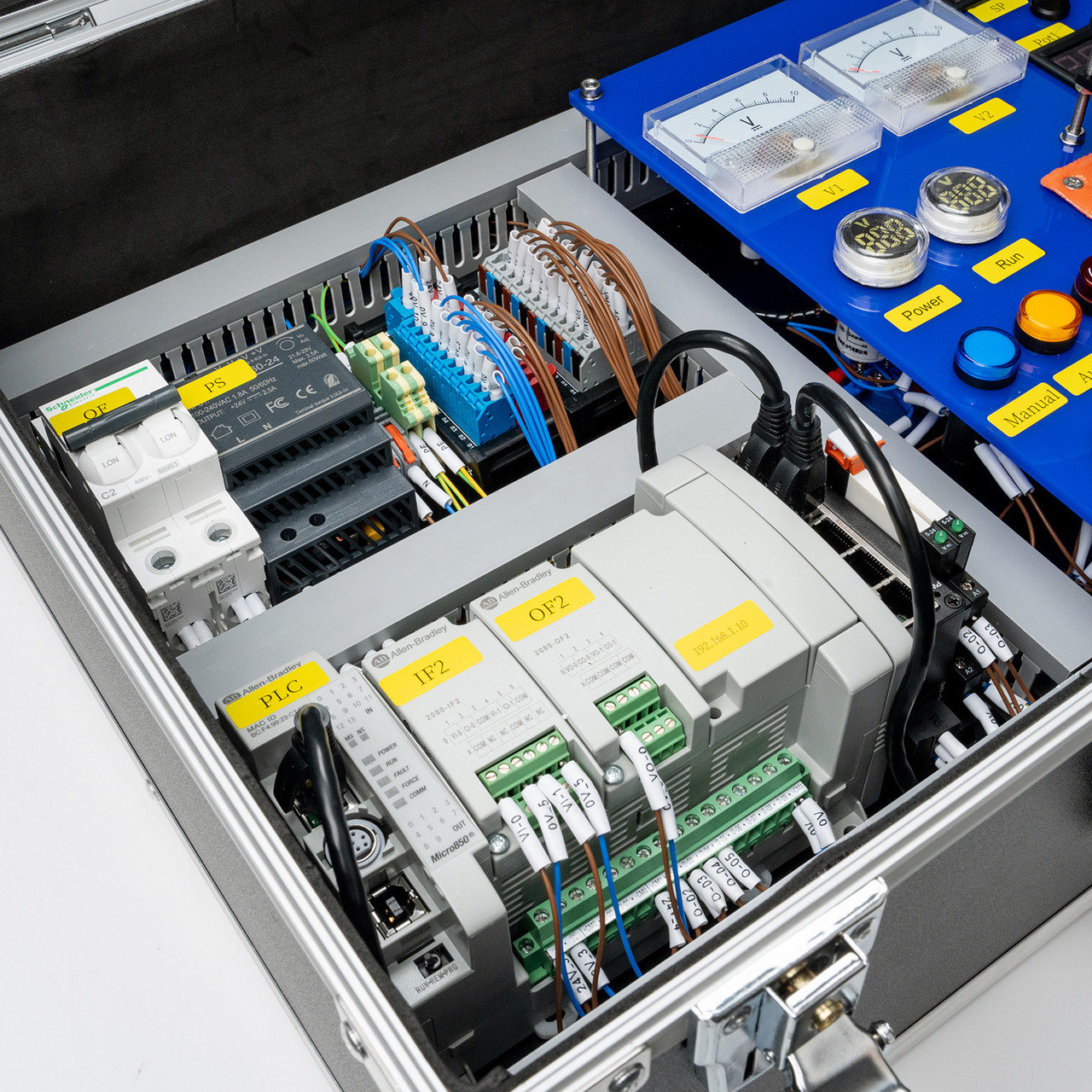

We can supply our optional PLC with terminals, this one is being controlled by an MicroLogix 1400, You can use any brand of PLC’s with our ‘mini machine series’, if you have your own you can supply the PLC, just make sure the inputs are 24VDC and the outputs are either DC or relay
Contact us if you are interested, these are built to order, ship date is 6-8 weeks from purchase.
• Technology coverage:
• Programmable Logic Controller, Basic Component Connection, Sensors Capacitive and Inductive, State Machine Programming
• Pneumatic technology application in production line
• Sensor technology application, Read Switches on Cylinders
• Belt conveyor mechanism installation and debugging
• Complete trainer installation and Debugging
• Material Detection with Pass/Fail drop bins
• Basic Machine Logic
Conveyor Trainer Part 1 - Overview of the Motor, Sensors, and Air Solenoids https://youtu.be/M7f-ZyR1mII
Conveyor Trainer Part 2 - Wiring the Motor, Solenoids, and Sensors https://youtu.be/FWyb43-UJ_s
Conveyor Trainer Part 3 - Programming a Start Stop, Effects of Power Up, and Online Edits https://youtu.be/7GUI8Deh0-w
Conveyor Trainer Part 4 - How to do Timed Logic and Pitfalls of Using Time in Place of Sensors https://youtu.be/dSmWWb1o-mo
Conveyor Trainer Part 5 - Using Sensors for Increased Reliability https://youtu.be/kPAxk5Kv9zU
Conveyor Trainer Part 6 - Adding Automatic Conveyor Operation and a Hand Off Auto https://youtu.be/55gwnWnIXw8
Conveyor Trainer Part 7 - Counting Sorted Parts and Stopping When the Part Trays are Full https://youtu.be/BVTIKvZQCTM
Conveyor Trainer Part 8 - Debugging Program Flaws. Thinking Before You Make Program Changes. https://youtu.be/clwP-uKQSL4
